| Input Power: | Unregulated 9 – 24 VDC |
| Power Consumption | Less than 1W @12 VDC |
| Protections | Reverse Polarity, Overvoltage (+/- 35 VDC), Short Circuit, Transient Voltage, TVS/ESD |
| Connector | 5mm pitch screw terminal blocks Enclosure: ABS Enclosure |
| Installation | Type Plug andPlay |
| Mounting | DIN Rail Mountable, Wall Mountable, Stack Mountable |
| Connectivity Supported: | RS485 |
| Protocol Supported: | Modbus RTU |
| Communication Interface: | 2 Wire Type |
| Watchdog Timer System: | (5 Sec) and Communication |
| Channels: | 8 |
| Contact Rating: | 24 VDC Sink/source (isolated) Up to 5000 VRMS for 1 minute |
| Standard: | Digital Isolator type IEC 60950 |
| Channel: | 5 |
| Contact Rating: | 24 VDC Sink/source (isolated) Up to 5000 VRMS for 1 minute |
| Type: | Form A Type Relay Output |
| Operating Temperature: | 0 to 55°C |
| Storage Temperature: | -10 to 70°C |
| Operating Humidity: | 30 – 95% RH (non-condensing) |
| 12 Months from date of installation or 18 Months from date of delivery (whichever is earlier)* |

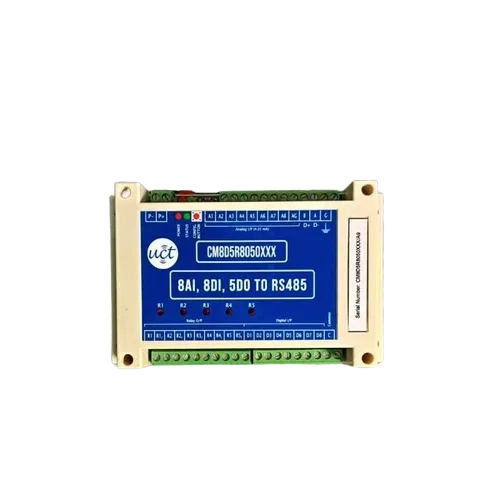

8 Digital Input, 8 Analog Input to RS485 and RS485 to 5 Digital Output converter module accepts the digital input data of 24Vdc from various controllers and devices .It also has 5 digital output channel with RS485 interface supporting Modbus RTU protocol connected with legacy device such as PLC. This controller also have capabilities to accept 8 analog inputs of 4-20mA signal type. These converters can be used with many legacy devices, machines and sensors, give flexibility of controlling, implementing logic and monitoring on various systems, thus, expanding the scope of any process.
| Input Power | Unregulated 9 – 24 VDC |
| Protection | Reverse Polarity, Overvoltage (+/- 35 VDC), Short Circuit, Transient Voltage, TVS/ESD |
| Data Connectivity | Modbus RS485 |
| Digital Input Channel | 8 |
| Input Standard | Optoisolated |
| Analog Input Channel | 8 |
| Input Standard | Single ended 12 bit ADC |
| Output Channel | 5 |
| Output Type | Form A Type Relay Output (SPST) |
| Enclosure | ABS Enclosure |
| Dimensions | Modular Architecture (115mm x 90mm x 40mm) |
| Installation Type | Plug and Play |
