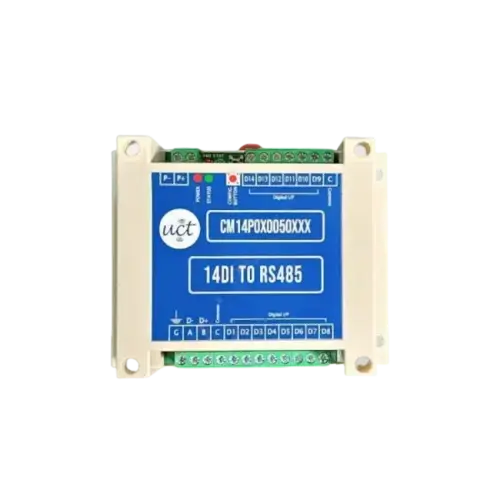

14 Digital Input to RS485

14 Digital Input with RS485 converter module accepts the 14 digital inputs from various industrial sources. It has a RS485 interface supporting Modbus RTU protocol. This data can be accessed and monitored by any legacy device such as PLC. The RS-485 standard supports half-duplex communication with two wires needed for transmit and receive data from legacy devices.

Input Power : Unregulated 9 – 24 VDC
Power Consumption : Less than 1W @12 VDC
Protections : Reverse Polarity, Overvoltage (+/- 35 VDC), Short Circuit, Transient Voltage, TVS/ESD
Connector : 5mm pitch screw terminal blocks
Enclosure : ABS Enclosure
Installation : Type Plug andPlay
Mounting : DIN Rail Mountable, Wall Mountable, Stack Mountable
Connectivity Supported: RS485
Protocol Supported : Modbus RTU
Communication Interface : 2 Wire Type
Watchdog Timer System : (5 Sec) and Communication
Channels : 14
Contact Rating : 24 VDC Sink/source (isolated) Up to 5000 VRMS for 1 minute
Standard : Optoisollated
Operating Temperature : 0 to 55°C
Storage Temperature : -10 to 70°C
Operating Humidity : 30 – 95% RH (non-condensing)
Warranty : 12 Months from date of installation or 18 Months from date of delivery (whichever is earlier)*
Key Features
ModBus RTU Protocol
ModBus RTU Protocol for Industrial Automation
watch icon image
Continuous monitoring of industrial equipment
lock icon image
Comprehensive safety and reliability
key icon image
Quick and easy to install
